$500≥1Piece/Pieces
| Hình thức thanh toán: | T/T |
| Incoterm: | FOB,CIF,EXW |
| Đặt hàng tối thiểu: | 1 Piece/Pieces |
| Giao thông vận tải: | Ocean,Air |
| Hải cảng: | Dalian Seaport,Tianjin Seaport,Beijing Airport |
Mẫu số: CH440
Thương hiệu: Tianyi
Trạng Thái: Mới
Thời Hạn Bảo Hành: 6 tháng
Ngành áp Dụng: Nhà máy sản xuất, Cửa hàng sửa chữa máy móc, Công trình xây dựng, Năng lượng & Khai thác
Video Kiểm Tra Nhà Máy: Đã cung cấp
Báo Cáo Thử Nghiệm Cơ Học: Đã cung cấp
Loại Tiếp Thị: Sản phẩm thông thường
Nguồn Gốc: Trung Quốc
Máy Móc Sở Hữu: Máy nghiền
Chứng Nhận: DIN
Vật Chất: Thép carbon
Đúc Hoặc Rèn: Rèn
Ngành ứng Dụng: Khai thác quặng
| Đơn vị bán hàng | : | Piece/Pieces |
| Loại gói hàng | : | Gói xuất khẩu |
| Ví dụ về Ảnh | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

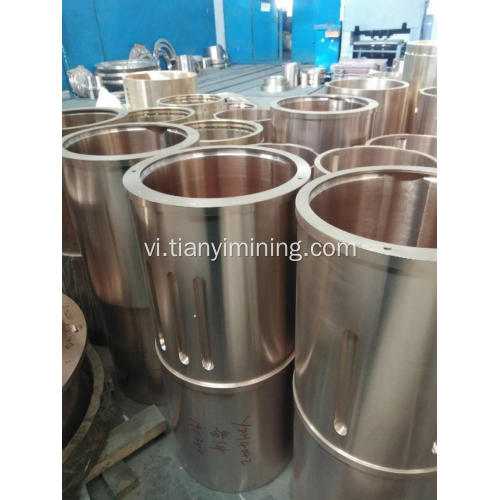

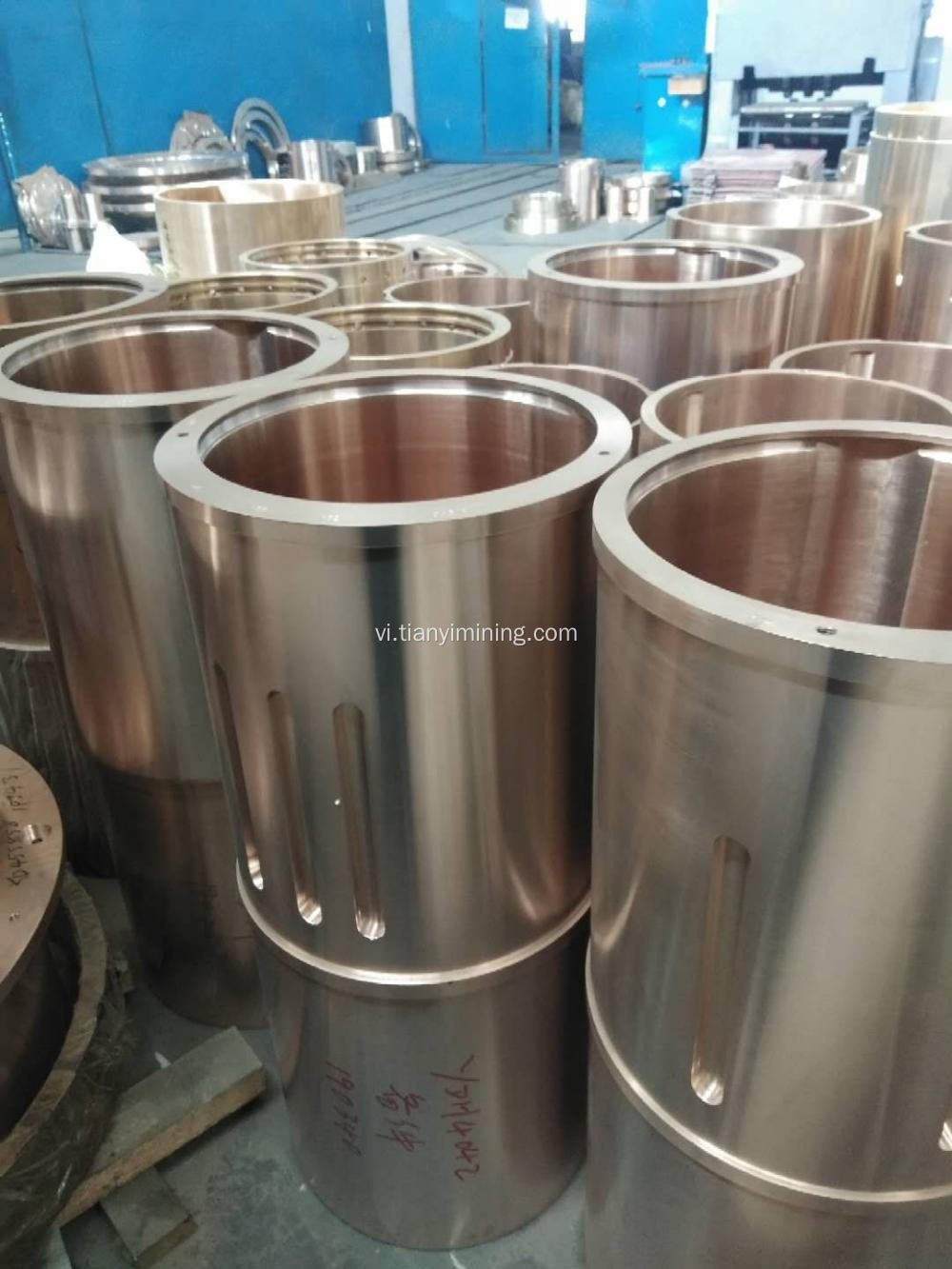

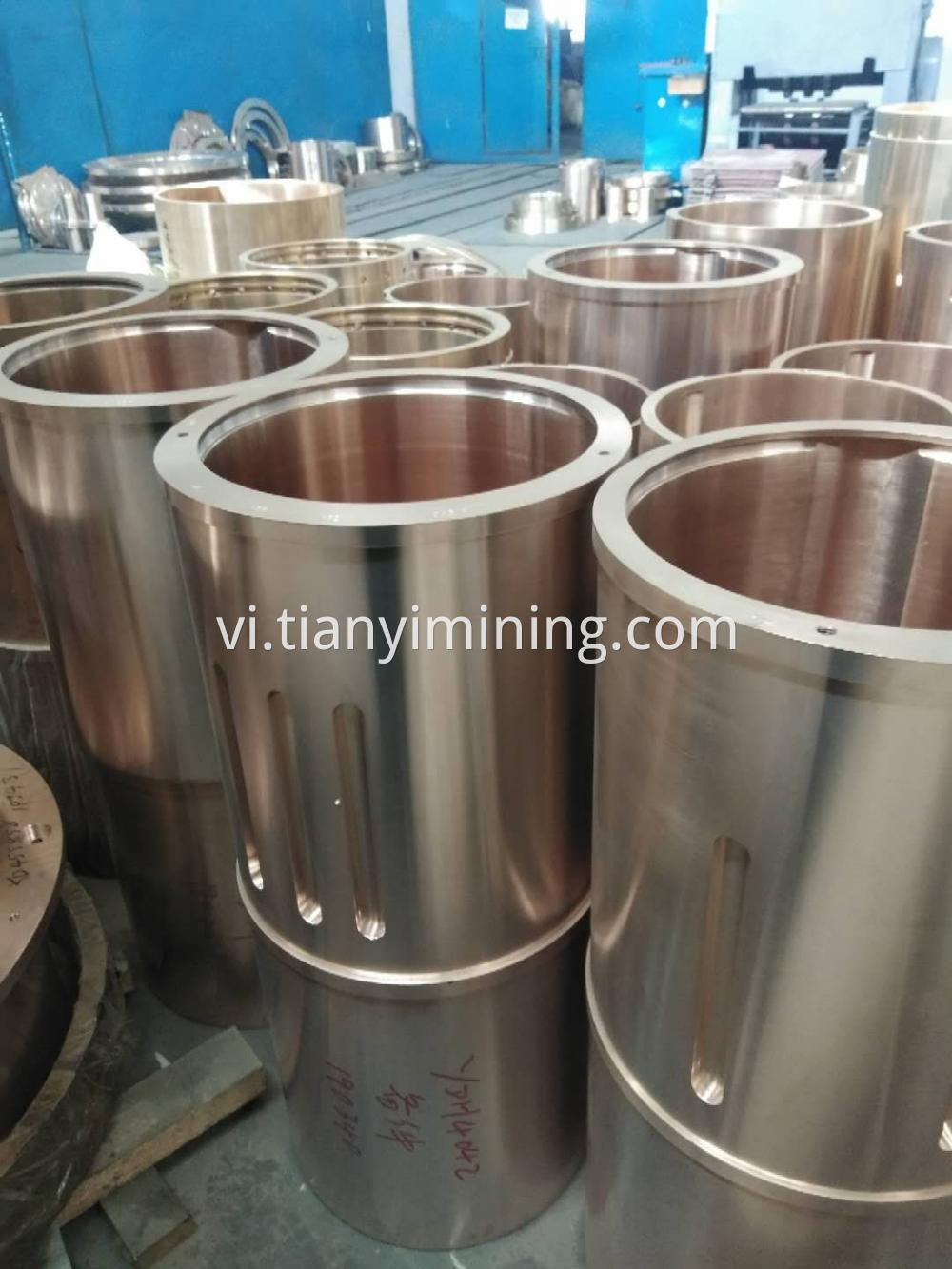

Ống lót lập dị
Chúng tôi cung cấp hầu hết các bộ phận thay thế và mặc các bộ phận của máy nghiền hình nón Sandvik. Các bộ phận của máy nghiền hình nón được phục vụ bởi việc khai thác Tianyi được tuân theo các tiêu chuẩn OEM về dung nạp và luyện kim, và có thể hoán đổi cho các bộ phận OEM hiện có.
| Parts No. | Items | Replace Quantity |
|---|---|---|
| 442.7098-00 /452.0230-901/452.6391-901 | BOTTOM SHELL H/S 4000 | 1 |
| 442.7201-00 | COVER | 2 |
| 843.1267-00 | STUD, DOUBLE END DIN938-M12X45-5.8-UNPLTD | 4 |
| 847.0147-00 | WASHER, PLAIN ISO7089-12-200HV-A3A | 4 |
| 845.0030-00 | NUT, HEXAGONAL, TORQUE ISO7040-M12-8-A3A | 4 |
| 442.7140-00 | PINIONSHAFT ARMLNR 14MNCR H/S4000 | 1 |
| 442.7141-00 | NARROW ARM LINER 14MNCR H/S4000 | 2 |
| 900.0027-00 | ELBOW ISO 49 DN80 R3 INCH | 1 |
| 442.7146-01 /452.4190-001 | BTTMSHELL BUSHING H/S4000 | 1 |
| 853.0464-00 | PIN CP 12M6x30 SMS 2374 | 1 |
| 900.0921-00 | TEE ADAPTER G 3/4 B x G 3/4 | 1 |
| 900.1412-00 | PIPE 3/4 X 70 | 1 |
| 900.0276-00 | PROTECTION CAP | 1 |
| 452.0243-901 | BOTTOM SHELL LINER KIT | 1 |
| 442.8794-01 | WEAR PLATE / BOTTOM SHELL /CH440 | 1 |
| 442.8798-01 | WEAR PLATE / BOTTOM SHELL /CH440 | 4 |
| 442.8797-01 | WEAR PLATE / BOTTOM SHELL /CH440 | 2 |
| 442.8796-01 | WEAR PLATE / BOTTOM SHELL /CH440 | 2 |
| 442.8795-01 | WEAR PLATE / BOTTOM SHELL /CH440 | 2 |
| 452.0239-001 | WEAR PLATE / BOTTOM SHELL /CH440 | 2 |
| 452.0238-001 | WEAR PLATE / BOTTOM SHELL /CH440 | 1 |
| 442.8799-06 | BAR (ASSY N11852114) | 12 |
| 442.7106-01 | DUST COLLAR H/S 4000 | 1 |
| 840.0634-00 | BOLT ISO4014 M16X25 8.8-A3F | 4 |
| 442.7109-01 | RETAINING RING | 1 |
| 853.0464-00 | PIN CP 12M6x30 SMS 2374 | 1 |
| 840.1281-00 | SCREW, HEXAGONAL ISO4017-M16X80-8.8-A3A | 12 |
| 847.0016-00 | SMS-L ACC Washer BRB 3x17/30 | 12 |
| 442.7110-01 | SUPPORT BAR H/S4000 | 1 |
| 442.7168-04 | SHIM T=1,0 H/S4000 | 1 |
| 442.7168-03 | SHIM T=0,7 H/S4000 | 1 |
| 442.7168-02 | SHIM T=0,5 H/S4000 | 1 |
| 442.7168-01 | SHIM T=0,1 H/S4000 | 1 |
| 841.0019-00 | SCREW, CAP, HEXAGON SOCKET HEAD ISO4762-M10X40-8.8-A3F | 3 |
| 442.7170-01 | GASKET TAN FIBRE H/S4000 | 1 |
| 442.7108-01 | SEAL RING INNER H/S4000 | 1 |
| 840.0071-00 | SCREW, HEXAGONAL ISO4017-M16X65-8.8-UNPLTD | 8 |
| 847.0060-00 | WASHER, PLAIN SMS1466-17X42X8-ST-FZB | 8 |
| 840.1073-00 | BOLT, HEXAGONAL ISO4014-M42X220-8.8-A3F | 16 |
| 845.0322-00 | NUT, HEXAGONAL ISO4032-M42-8-A3A | 16 |
| 847.0171-00 | WASHER, PLAIN SS70-BRFB-43X80-200HV-FZB | 16 |
| 899.0278-00 | PROTECTION CAP M42 SW65-2-G68 | 16 |
| 442.9530-01 | SCREW, HEXAGONAL ISO4017-M42X100-10.9-UNPLTD | 4 |
| 899.0278-00 | PROTECTION CAP M42 SW65-2-G68 | 4 |
| 442.8068-01 | ECCENTRIC /S4000 | 1 |
| 442.7151-01 | ECCENTRIC /H4000 | 1 |
| 442.9643-01 | ECCENTRIC BUSHING 13+16+20+24 /H4000/CH440 | 1 |
| 442.9642-01 | ECCENTRIC BUSHING 24+28+32 / H4000/CH440 | 1 |
| 442.9406-01 | ECCENTRIC BUSHING 32+36+40+44 /H4000/CH440 | 1 |
| 442.8067-01 | ECCENTRIC BUSHING 20+25+30+36 /S4000 | 1 |
| 442.7142-01 | HUB | 1 |
| 442.7169-00 | RING /H4000 | 1 |
| 841.1157-00 | BOLT, HEXAGONAL ISO4014-M12X40-8.8-A3F | 8 |
| 847.0147-00 | WASHER, PLAIN ISO7089-12-200HV-A3A | 8 |
| 442.9609-01 | KEY M H/S4000 | 1 |
| 841.0025-00 | SCREW, CAP, HEXAGON SOCKET HEAD ISO4762-M12X50-12.9-UNPLTD | 5 |
| 841.0025-00 | SCREW, CAP, HEXAGON SOCKET HEAD ISO4762-M12X50-12.9-UNPLTD | 7 |
| 847.0180-00 | WASHER, LOCK, HELICAL SPRING, REGULAR | 12 |
| 442.7093-00/442.9330-00 | GEAR SET H/S4000 | 1 |
| 442.7171-01 | KEY T50X28X60 | 1 |
| 442.7107-01 | ECCENTRIC WEARING PLATE H/S4000 | 1 |
| 853.0646-00 | PIN ROLL N 16X45 H4000, | 8 |
| 442.7163-01 | MPS CYLINDER HOUSING | 1 |
| 840.0671-00 | SCREW, HEXAGONAL ISO4017-M24X90-10.9-UNPLTD | 16 |
| 847.0124-00 | WASHER BRFB 25X45 T=4 mm | 16 |
| 442.7166-01 | PISTON CYLINDER BUSHING H/S4000 | 1 |
| 840.0019-00 | SCREW, HEXAGONAL ISO4017-M8X12-8.8-A3A | 5 |
| 847.0012-00 | WASHER, PLAIN ISO7089-8-200HV-TZN | 5 |
| 873.0892-00 | O-RING 530X7 SMS 1587 | 1 |
| 442.9672-00 | PISTON TPE H/S4000 | 1 |
| 853.0119-00 | PARALLEL PIN SMS2374-25-M6X60-E295 | 1 |
| BG00259470 | STEP BEARING SET (2260/2280/4075) LAPPED | 1 |
| 442.7122-01 | PISTON WEARING PLATE | 1 |
| 442.7121-01 | STEP WASHER | 1 |
| 442.7112-00 | CHEVRON PACKING | 1 |
| 900.1933-00 | PLUG VSTI-ED, VSTI R1 1/2, 7580208 | 1 |
| 442.7167-01 | MPS CLAMP PLATE H/S4000 | 1 |
| 841.0266-00 | SCREW, CAP, HEXAGON SOCKET HEAD ISO4762-M12X25-8.8-A3A | 8 |
| 442.9663-00 | CYLINDER COVER | 1 |
| 840.0671-00 | SCREW, HEXAGONAL ISO4017-M24X90-10.9-UNPLTD | 13 |
| 840.0676-00 | SCREW M6S 24X140 8.8 ISO 4014 | 2 |
| 847.0124-00 | WASHER BRFB 25X45 T=4 mm | 15 |
| 902.0605-00 | VALVE AIR BLEEDER UV 121 | 1 |
| 873.0835-00 | O-RING SMS1586-419.3X5.7-NBR70 | 1 |
| 442.7202-01 | GASKET TAN FIBRE D 570/432 | 1 |
| 873.1276-00 | O-RING SMS1586-453.0X5.7-NBR70 | 1 |
| 442.8783-01 | PLUG | 1 |
| 873.0819-00 | O-RING SMS1586-59.50X3.00-NBR70 | 1 |
| 840.0026-00 | SCREW, HEXAGONAL ISO4017-M8X40-8.8-A3A | 6 |
| 847.0012-00 | WASHER, PLAIN ISO7089-8-200HV-TZN | 6 |
| 840.0019-00 | SCREW, HEXAGONAL ISO4017-M8X12-8.8-A3A | 4 |
| 984.0391-00 | TRANSDUCER PROBE | 1 |
| 442.9966-901 / 452.6395-901 | PINION SHAFT HOUSING ASSY | 1 |
| 442.7506-01 | PINION SHAFT HOUSING H/S4000 | 1 |
| 442.7136-03 | GASKET T= 1,5 H/S4000@ | 1 |
| 442.7136-02 | GASKET T= 0,8 H/S4000 | 1 |
| 442.7136-01 | GASKET T=0,5 H/S4000 | 1 |
| 868.0282-00 | ROLLER BRNG 23122 CC/W33/C3 | 1 |
| 868.0804-00 | ROLLER BRNG 452322 M2/W502 | 1 |
| 442.7130-01 | SPACER RING /H4000 | 1 |
| 442.7131-01 | SPACER RING H/S4000 | 1 |
| 873.0779-00 | O-RING SMS1586-84.10X5.70-NBR70 | 1 |
| 873.0399-00 | O-RING SMS1586-97.79X5.33-NBR70 | 1 |
| 873.1208-00 | SEAL RING ISO6194-130X160X12MM-VITON | 1 |
| 873.1208-00 | SEAL RING ISO6194-130X160X12MM-VITON | 1 |
| 442.9684-01 | BRNG COVER INNER H/S4000 | 1 |
| 442.7133-01 | BRNG COVER H/S4000 | 1 |
| 840.0045-00 | SCREW, HEXAGONAL ISO4017-M12X30-8.8-A | 6 |
| 847.0147-00 | WASHER, PLAIN ISO7089-12-200HV-A3A | 6 |
| 840.0066-00 | BOLT, HEXAGONAL ISO4014-M16X40-8.8-A3F | 6 |
| 847.0016-00 | SMS-L ACC Washer BRB 3x17/30 | 6 |
| 442.7134-01 | GASKET T= 0,8 H/S4000 | 1 |
| 442.7135-02 | GASKET T= 0,8 H/S4000 | 1 |
| 442.7135-01 | GASKET T= 0,5 H/S4000 | 1 |
| 853.0590-00 | PIN, SPRING, SLOTTED, HEAVY DUTY ISO8752-8X28-ST-ZNPH | 1 |
| 442.7129-01/442.9937-01 | PINION SHAFT H/S4000 | 1 |
| 857.0337-00 | KEY T 22X14X95 | 1 |
| 857.0336-00 | KEY T28X16X110, SMS 2306 | 1 |
| 900.0022-00 | ELBOW ISO49-A4-3/4-FE-A | 1 |
| 900.2026-00 | MAGNETIC PLUG 3/4 | 1 |
| 873.0385-00 | RING, SEAL TREDO NR 20 | 1 |
| 442.7577-01 | PLUG OIL LEVEL /H4000 | 1 |
| 873.0108-00 | O-RING SMS1586-34.20X3.00-NBR70 | 1 |
| 442.7578-01 | PIPE | 1 |
| 442.8703-00 | PUMP ASSY P3AAN0075FL20B01N 6P 71 0.25kW | 1 |
| 906.0367-00 | PUMP, HYDRAULIC P3AAN0075FL20B01N | 1 |
| 930.0248-00 | COUPLING SPIDEX A19.ALU ID 14-7 KEY2 | 1 |
| 923.0193-00 | GAUGE, PRESSURE D63 0 -1.6 Mpa | 2 |
| 912.0129-00 | FILTER CARTRIDGE PC 507 HC-2 | 1 |
| 855.0108-00 | RING, RETAINING, EXTERNAL DIN471-85X3-ST-ZNPH | 1 |
| 442.7238-01 | WASHER H/S4000 | 1 |
| 840.0065-00 | SCREW, HEXAGONAL ISO4017-M16X35-8.8-A3A | 1 |
| 847.0016-00 | SMS-L ACC Washer BRB 3x17/30 | 1 |
| 840.1063-00 | SCREW, HEXAGONAL ISO4017-M16X120-8.8-A3A | 2 |
| 845.0009-00 | NUT, HEXAGONAL ISO4032-M16-8-A3A | 2 |
| 452.1699-901 / 442.9035-AD | MAIN SHAFT ASSEMBLY S4000 | 1 |
| 442.7745-AD | MAIN SHAFT ASSEMBLY H4000 | 1 |
| 442.8062-01 | MAIN SHAFT S4000 / USE ASSY N11851877 | 1 |
| 442.7100-01 | MAIN SHAFT H4000 / USE ASSY N11851874 | 1 |
| BG00213813 | TAPERED MAINSHAFT SLEEVE CH440:2: BLOCK U.S.A!! | 1 |
| 442.7117-01 | MAIN SHAFT SLEEVE | 1 |
| 853.0119-00 | PARALLEL PIN SMS2374-25-M6X60-E295 | 1 |
| 442.7120-01 | MAIN SHAFT STEP | 1 |
| 855.0026-00 | RING, RETAINING, EXTERNAL DIN471-100X3-ST-ZNPH | 1 |
| 442.8332-01 | HEAD H4000 / USE ASSY N11851874 | 1 |
| 442.8063-01 | HEAD S4000 / USE ASSY N11851877 | 1 |
| 442.7230-03 | MANTLE B 21MNCR CH440 | 1 |
| 442.7225-03 | MANTLE A 21MNCR CH440 | 1 |
| 442.8089-02 | MANTLE A 18MNCR CS440 | 1 |
| 442.8039-02 | MANTLE EF 18MNCR CH440 | 1 |
| 442.8070-02 | MANTLE B 18MNCR CS440 | 1 |
| 442.9073-02 | MANTLE HC 18MNCR CH440 | 1 |
| 442.7225-02 | MANTLE A 18MNCR CH440 | 1 |
| 442.8070-03 | MANTLE B 21MNCR CS440 | 1 |
| 442.8089-03 | MANTLE A 21MNCR CS440 | 1 |
| 442.8070-01 | MANTLE B 14MNCR CS440 | 1 |
| 442.8089-01 | MANTLE A 14MNCR CS440 | 1 |
| 442.8039-03 | MANTLE EF 21MNCR CH440 | 1 |
| 442.8039-01 | MANTLE EF 14MNCR CH440 | 1 |
| 442.7225-01 | MANTLE A 14MNCR CH440 | 1 |
| 442.9073-03 | MANTLE HC 21MNCR CH440 | 1 |
| 442.9073-01 | MANTLE HC 14MNCR CH440 | 1 |
| 442.7230-02 | MANTLE B 18MNCR CH440 | 1 |
| 442.7230-01 | MANTLE B 14MNCR CH440 | 1 |
| 442.7105-00 | HEAD NUT WITH RING | 1 |
| 442.8333-01 | HEAD NUT INNER | 1 |
| 442.7115-01 | BURNING RING H/S4000 | 1 |
| 442.7102-01 | DUST SEAL RING | 1 |
| 442.7103-01 | RETAINER RING DUST SEAL H/S4000 | 1 |
| 442.7523-01 | RETAINER H/S4000 | 1 |
| 442.7524-01 | SCRAPER H/S4000 | 1 |
| 840.0069-00 | SCREW M6S 16X55 8.8 ISO4017 | 11 |
| 840.0071-00 | SCREW, HEXAGONAL ISO4017-M16X65-8.8-UNPLTD | 1 |
| 847.0016-00 | SMS-L ACC Washer BRB 3x17/30 | 12 |
| 442.8059-01 | TOP SHELL EC2 S4000 | 1 |
| 442.7180-00/442.8553-901 | TOP SHELL EC2 H4000 | 1 |
| 442.9036-01 | WEAR PLATE RIM LINER 14MNCR CS440 | 6 |
| 853.0979-00 | PIN 2172-00 D32X32 /S4800 | 20 |
| 442.8075-01 | SPIDER ARM SHIELD 14MNCR CS440 | 2 |
| 442.7190-01 | SPIDER ARM SHIELD 14MNCR CH440 | 2 |
| 442.8077-01 | FIXING PIN D 32X45 (FOR S-MODEL) | 4 |
| 442.8078-01 | DAMPER (FOR S-MODEL) | 4 |
| 442.8079-01 | CHECK, RUBBER BUMPER 10X60X250 (FOR S-MODEL) | 2 |
| 900.0425-00 | PIPE COUPLING | 4 |
| 900.1262-00 | ADAPTER, ELBOW NIPPLE 90 DEG 1/4 IN. STR. FEMALE TO TAPERED MALE (FOR S-MODEL) | 2 |
| 900.1030-00 | REDUCER RI-08-04 1/2"-1/4 (FOR S-MODEL) | 2 |
| 808.0220-00 | PIPE, STEEL 10 X 1,5 MM, L=1,35 M | 1 |
| 650.0086-11 | HOSE ASSEMBLY R1AT R1/4 X 650 (FOR S-MODEL) | 2 |
| 914.0093-00 | NIPPLE, LUBRICATING AH KR1/4 | 1 |
| 442.8090-01 | BRACKET S4000 | 1 |
| 840.0021-00 | SCREW, HEXAGONAL ISO4017-M8X20-8.8-A3A (FOR S-MODEL) | 4 |
| 900.0243-00 | SOCKET RSK 1058 .250 Rp 1/4 Fe 900.0243 SA (FOR S-MODEL) | 1 |
| 900.0652-00 | STRAIGHT ADAPTER G 1/4 B -19 X G 1/4 B -19 900.0652S (FOR S-MODEL) | 2 |
| 442.9164-00 | SPIDER CAP TPE /S4000 | 1 |
| 442.7492-01 | SPIDER CAP CS 60 /H4000 | 1 |
| 912.0114-00 | FILTER, AIR PI 0102 MIC, 77575806 | 1 |
| 900.0169-00 | NIPPLE, HEXAGONAL ISO49-N8-1/4-FE-A | 1 |
| 900.0314-00 | SLEEVE (FOR S-MODEL) | 1 |
| 900.0002-00 | ELBOW ISO49-A1-1/4-FE-A | 1 |
| 900.2008-00 | ELBOW 45 DEG SMS 453-10 (FOR S-MODEL) | 1 |
| 873.0838-00 | O-RING SMS1586-499.30X5.70-NBR70 | 1 |
| 840.0078-00 | SCREW M6S 20X60 8.8 ISO4017 /H4800 | 4 |
| 840.0079-00 | SCREW M6S 20X70 8.8 ISO4017 /S4800 | 4 |
| 847.0165-00 | WASHER TBRB 21X36 | 4 |
| 442.9408-MNBR / BG00237121 | SPIDER BUSHING MNBR | 1 |
| 442.9408-01 | SPIDER BUSHING STD | 1 |
| 840.0652-00 | SCREW M6S 20X90 8.8 ISO4014 | 6 |
| 847.0132-00 | WASHER BRB 3x21/36 | 6 |
| 442.7193-01 | SPIDER SEAL RING | 1 |
| 900.0981-00 | PLUG BSPT 1 INX | 1 |
| 442.8418-03 | CONCAVE MF 21MNCR CH440 | 1 |
| 452.3027-003 | CONCAVE EC TOPGRIP 21MNCR CH440 | 1 |
| 442.8421-02 | CONCAVE C 18MNCR CH440 | 1 |
| 442.8420-02 | CONCAVE M 18MNCR CH440 | 1 |
| 442.8418-02 | CONCAVE MF 18MNCR CH440 | 1 |
| 442.8416-02 | CONCAVE EF 18MNCR CH440 | 1 |
| 452.3027-002 | CONCAVE EC TOPGRIP 18MNCR CH440 | 1 |
| 442.8417-02 | CONCAVE F 18MNCR CH440 | 1 |
| 442.8419-02 | CONCAVE M 18MNCR CH440 | 1 |
| 442.8417-03 | CONCAVE F 21MNCR CH440 | 1 |
| 442.8419-03 | CONCAVE M 21MNCR CH440 | 1 |
| 442.8421-03 | CONCAVE C 21MNCR CH440 | 1 |
| 442.8421-01 | CONCAVE C 14MNCR CH440 | 1 |
| 442.8416-03 | CONCAVE EF 21MNCR CH440 | 1 |
| 442.8416-01 | CONCAVE EF 14MNCR CH440 | 1 |
| 442.8417-01 | CONCAVE F 14MNCR CH440 | 1 |
| 452.3027-001 | CONCAVE EC TOPGRIP 14MNCR CH440 | 1 |
| 442.8419-01 | CONCAVE M 14MNCR CH440 | 1 |
| 442.8420-03 | CONCAVE M 21MNCR CH440 | 1 |
| 442.8420-01 | CONCAVE M 14MNCR CH440 | 1 |
| 442.8418-01 | CONCAVE MF 14MNCR CH440 | 1 |
| 831.0016-00 | BACKING COMPOUND (10 KG) | 1 |
| 442.7485-01 | FILLER RING MC, M, EF / H4000 | 1 |
| 442.7484-01 | FILLER RING MF, F / H4000 | 1 |
| 900.1821-00 | PIPE 1.25 X 165" KREA SMS 1787" | 1 |
| 840.1074-00 | BOLT, HEXAGONAL ISO4014-M30X280-8.8-A3A | 6 |
| 442.7251-03 | WASHER | 6 |
| 442.7251-02 | WASHER | 6 |
| 442.7252-04 | SHIM 10MM | 6 |
| 442.7252-03 | SHIM 5MM | 6 |
| 442.7252-02 | SHIM 3MM | 6 |
| 442.7252-01 | SHIM 1MM | 6 |
| 442.8908-03 | HOSE 31,5/0,6 L= 210 | 6 |
| 442.8687-01 | SCREW M6S 30x380 8.8 /H4000 | 6 |
| 845.0284-00 | LOCK NUT M6MN M30 8 DIN985 | 6 |
| 442.7253-01 | SLEEVE /H4000/8000 | 6 |
| 442.7271-01 | WASHER /H4000/8000 | 6 |
| 847.0125-00 | WASHER, PLAIN ISO7089-30-200HV-A3A | 6 |
| 863.0058-00 | CONICAL DISC SPRNG DIN2093-A90-UNPLTD | 54 |
| 442.8425-01 | CONCAVE SUPPORT RING | 1 |
| 442.8290-01 | GUIDE PIN D 40X85 | 4 |
| 452.0945-902 | CONCAVE RING C, STEPPED 2 18MNCR CS440 | 1 |
| 442.8114-90 | CONCAVE RING EC 18MNCR CS440 | 1 |
| 442.8098-90 | CONCAVE RING LOWER C 18MNCR CS440 | 1 |
| 452.0273-902 | CONCAVE RING LOWER MC 18MNCR CS440 | 1 |
| 452.1955-902 | CONCAVE RING EC, STEPPED 2 18MNCR CS440 | 1 |
| 442.8114-91 | CONCAVE RING EC 21MNCR CS440 | 1 |
| 442.8098-91 | CONCAVE RING LOWER C 21MNCR CS440 | 1 |
| 452.1972-901 | CONCAVE RING LOWER MC STEPPED 2 18MNCR CS440 | 1 |
| 442.8098-00 | CONCAVE RING LOWER C 14MNCR CS440 | 1 |
| 452.0273-903 | CONCAVE RING LOWER MC 21MNCR CS440 | 1 |
| 452.0273-901 | CONCAVE RING LOWER MC 14MNCR CS440 | 1 |
| 452.0945-91 | CONCAVE RING C, STEPPED 2 21MNCR CS440 | 1 |
| 452.0945-901 | CONCAVE RING C, STEPPED 2 14MNCR CS440 | 1 |
| 442.8114-00 | CONCAVE RING EC 14MNCR CS440 | 1 |
| 452.1955-903 | CONCAVE RING EC, STEPPED 2 21MNCR CS440 | 1 |
| 452.1955-901 | CONCAVE RING EC, STEPPED 2 14MNCR CS440 | 1 |
| 442.8115-90 | CONCAVE SEGMENT UPPER EC 18MNCR CS440 | 8 |
| 442.8115-00 | CONCAVE SEGMENT UPPER EC 14MNCR CS440 | 8 |
| 442.8099-90 | CONCAVE SEGMENT UPPER C 18MNCR CS440 | 8 |
| 442.8099-00 | CONCAVE SEGMENT UPPER C 14MNCR CS440 | 8 |
| 914.0170-00 | OIL LEVEL INDICATOR HCD 532-1000 | 1 |
| 902.0746-00 | VALVE, CHECK NRSF-3/4R 200KPA | 1 |
| 912.0127-00 | DIFFERENTIAL PRESSURE GAUGE PIS3097/2,2 | 2 |
| 923.0192-00 | THERMOMETER IFC60 0-120 L100 | 1 |
| 930.0237-00 | COUPLING HALF D38 05-32-540 | 1 |
| 906.0142-00 | SEAL SET W38-84087S | 1 |
| 912.0126-00 | FILTER ELEMENT, OIL PC230 | 2 |
| 906.0387-00 | FAN BLADE 775-9-PPG-4ZL | 6 |
| 910.0067-00 | COOLER CELLPAKET LD056 539056 | 1 |
| 912.0087-00 | DUST REMOVER DIRT TRAP SW/0 1 1/2-0,6 MM | 1 |
| 902.0723-00 | VALVE PRESS. RELIEF DN 32 474322 0,7MPa | 1 |
| 984.1008-00 | FLOW SWITCH LIQUID LEVEL FLOW SWITCH | 1 |
| 930.0205-00 | COUPLING HE 14 USED ON 44-100-116-801 PUMP'G UNIT | 1 |
| 906.0377-00 | PUMP, HYDRAULIC P3BAN1003CL10B01N | 1 |
| 906.0270-00 | PUMP HPI PUMP, P/N P3BAN2004HL10B02 | 1 |
| 972.0182-00 | MOTOR 2PETAL90-2,2s | 1 |
| 919.0165-00 | ACCUMULATOR EHV ACCU 24.5-330/90 | 1 |
| 900.0655-00 | ADAPTER R3/4 X R3/4 702-12-12 | 2 |
| 912.0128-00 | FILTER HEAD PI 2205-56 (-47) | 1 |
| 923.0379-00 | GAUGE, PRESSURE 100M20-2 0-10MPa/Psi | 1 |
| 984.0605-00 | IMMERSION HEATER L=545 MM 380/220V-1500W | 1 |
| 879.0359-00 | PULLEY, V-BELT 375/MGT 125 10XSPC | 1 |
| 869.0295-00 | BUSHING 125-90 | 1 |
| 869.0283-00 | BUSHING 125-95 | 1 |
| 869.0278-00 | BUSHING 125-85 | 1 |
| 869.0261-00 | BUSHING 125-80 | 1 |
| 869.0235-00 | BUSHING 125-100 | 1 |
| 912.0138-00 | FILTER, AIR PUROLATOR PI 0154 | 1 |
| 912.0139-00 | FILTER ELEMENT AIR BLOWER | 2 |
| 912.0113-00 | FILTER, AIR LUFTFILTER504-2S 5 MICRON | 1 |
| 902.0645-00 | VALVE AIR REGULATOR 216-2-8 | 1 |
| 923.0267-00 | GAUGE, PRESSURE D100 0-10 MBAR R3/8 | 1 |
| 864.0046-00 | DAMPER ELEMENT SAW 150B | 4 |
| 442.1561-01 | KEY | 4 |
| 984.1423-00 | PHOTOELECTRIC SENSOR | 1 |
| 452.5575-901 | PINION SHAFT REPAIR KIT | 1 |
| 452.5778-901 | BOTTOM SHELL ARM LINER KIT | 1 |
| 442.8159-90 | FEED HOPPER CONE C - RIGHT | 2 |
| 442.8159-00 | FEED HOPPER CONE C - LEFT | 2 |
| N/A | MANTLE LIFTING TOOL (for Metso re-engineered mantles) | 1 |
| 825.0182-00 | SPIDER BUSHING GREASE (18 KG) | 1 |
| 442.7267-00 | FEED DISTRIBUTOR RIGHT | 1 |
| 442.7267-90 | FEED DISTRIBUTOR LEFT | 1 |
| 442.7268-01 | HOLDER | 1 |
| 875.0276-00 | V-BELT SPC 2650 | 10 |
| 875.0249-00 | V-BELT SPC 4500 | 10 |
Công ty TNHH Thương mại Tianyi, Công ty TNHH được thành lập vào năm 2020. Chúng tôi là sự kết hợp giữa các kỹ sư và đội ngũ bán hàng với hơn 10 năm kinh nghiệm làm việc. Họ đã làm việc trong các công ty khai thác nổi tiếng thế giới.
Chất lượng và dịch vụ là mục đích của công ty. Chúng tôi sẽ cung cấp các sản phẩm chất lượng cao và hoàn thành các chương trình hỗ trợ để phục vụ các công ty khai thác trên toàn thế giới.
Chúng tôi cung cấp phụ tùng chất lượng cao cho người nghiền nón và người nghiền hàm để thay thế các phụ tùng ban đầu.
Khách hàng của chúng tôi đến từ: Anh (Anh), Pháp, Phần Lan, Thụy Điển, Nga, Hoa Kỳ (Hoa Kỳ), Chile, Peru và Úc.
Privacy statement: Your privacy is very important to Us. Our company promises not to disclose your personal information to any external company with out your explicit permission.
Fill in more information so that we can get in touch with you faster
Privacy statement: Your privacy is very important to Us. Our company promises not to disclose your personal information to any external company with out your explicit permission.
Contact Now
